Height Gauge V4+

Diameter Measurement Trimos Height Gauges

Robust Mechanical Design, Supports long and heavy probes up to 400 mm

Smart reverse, easy diameter measurement

2D Measurement Capabilities

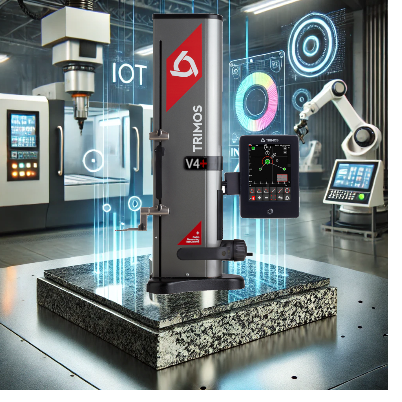

Industry 4.0 Compatibility

Advanced Display Interface

Real-Time Statistical Analysis

Advanced tolerance view

New standard in height gauge performance

Price request

Demo request

The new V4+ redefines precision and functionality by seamlessly combining the mechanical excellence of the V4 with the advanced interface and innovative capabilities of advanced height gauges. This design delivers exceptional performance, making it an efficient and cost-effective alternative to traditional 2D height gauges, while ensuring unmatched performance and user experience.

Engineered with Swiss precision, the V4+ offers robust mechanical stability and integrates a smooth air cushion system for effortless movement on the measuring table. Its advanced capabilities include essential measurement functions such as distances, diameters, and center distances, ensuring versatility and ease of use for both simple and complex tasks.

Robust Mechanical Design
Supports long and heavy probes up to 400 mm with exceptional repeatability.

Dynamic graphical feedback
Real-time display of measurement progress and results, ensuring clarity and precision at every step.

Smart touch navigation
Intuitive menu structures and responsive touch controls make operation straightforward and efficient, reducing training time.

Integrated 2-coordinate measurement
Intuitive 2D visualization of parts, showing measurement results instantly.

Integrated measurement programs
Customizable programs simplify complex measurements, saving time and minimizing errors.

Comprehensive data connectivity
USB, RS232, and Wireless options for easy data export, integration, and analysis across systems.

These features are designed to deliver unparalleled measurement accuracy and streamline operations, making the V4+ a top choice for professionals seeking innovation and efficiency in a cost-effective package.

Extended Warranty

Related products

Height gauge V1 Height gauge V2 Height gauge V3 Height gauge V4 Height gauge V4+ Height gauge V5 Height gauge V6 Height gauge V8 Height gauge V7 Height gauge V9 What is a height gauge

Documentation

Height Gauge Search Engine Smart Reverese technology Catalog Trimos height-gauges Accessories height gauges Content of Accessory Sets Brochure Height Gauge V4+ Technical specifications Video TrimosDataTranfer

Related applications

Diameter and centerline measurements Long range height measurements Diameter measurement – SMART REVERSE technology

Technical details

V4+		400	700
Measuring range	mm (in)	407 (16)	711 (28)
Application range	mm (in)	719 (28)	1023 (40)
Max permissible errors, B_MPE	µm	2.5 + L(mm)/250	2.5 + L(mm)/250
Repeatability, R_MPE (2s)	µm	2 (Ø: 3)
Frontal squareness deviation S_MPE	µm	9	13
Max. Resolutions	mm	0.001 (0.00005)
Measuring force	N	0.75 ÷ 1.5
Autonomy	h	20
Interfaces		USB / RS232 / Wireless
Air cushion		Yes
Weight	kg	21	24

The above values were determined in accordance with ISO 13225 using the TA-MI-101 insert.
R_MPE is defined as 2 times the standard deviation (2s) over a series of 20 height measurements.
